GeForce RTX™ 4080 SUPER SG 1-Click OC
-
AWARDS
-
FEATURES
- NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2X performance and power efficiency
- 4th Generation Tensor Cores: Up to 2X AI performance
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Microsoft DirectX® 12 Ultimate
- GDDR6X Graphics Memory
- NVIDIA DLSS 3
- NVIDIA® GeForce Experience™
- NVIDIA G-SYNC®
- NVIDIA GPU Boost™
- Game Ready Drivers
- Vulkan RT API, OpenGL 4.6
- DisplayPort 1.4a, HDMI 2.1
- HDCP 2.3
- VR Ready
- To 1-Click OC, overclock, control ARGB and monitor GPU info of your graphics cards in-App, please make sure your mobile device and PC are connected with the same WiFi network.
- All photos, specifications, contents are used for reference only and are subject to change without notice. Actual products in different countries varies and are best to consult your local distributor / importer for confirmation.
-
SPECIFICATION
GPU Engine Specs:
- CUDA Cores: 10240
- Boost Clock: 2610MHz
- 1-Click OC Clock: 2625MHz (by installing Xtreme Tuner Plus Software and using 1-Click OC)
Memory Specs:
- Memory Speed: 23 Gbps
- Standard Memory Config: 16GB
- Memory Interface Width 256-bit GDDR6X
- Memory Bandwidth: 736 GB/sec
Feature Support:
- PCI-E 4.0
- Windows 10/11 64-bit
Fan Feature:
- 3 * 102mm
- WINGS 2.0 with Fan stop @ Idle (All Fans)
Display Support:
- DisplayPort 1.4a x 3, HDMI 2.1a x 1
Dimensions:
- Dimensions(with Bracket): 352 * 153 * 66mm
- Dimensions(without Bracket): 336 * 138 * 66mm
In Box Accessories:
- 1-Click sync pro cable
- Aluminum support stick
- PCIe 1x 16-pin to 3x 8-pin adapter
- 1-Clip Booster 2.0 fan
-
REQUIREMENT
- PCI Express-compliant motherboard with one x16 graphics slot
- System Space for 3.5-slot card required
- PSU with native 450W PCIe Gen5 16-pin power connector, or minimum 3x PCIe 8-pin power connectors (use with included adapter)
- Minimum 750W or greater system power supply
(Minimum is based on a PC configured with a Ryzen 9 5900X processor. Power requirements can be different depending on system configuration.) - 32GB system memory recommended)
- Microsoft Windows 10/11 64-bit (Build 2004 or later recommended)
- 1-Clip Booster 2.0 Fan is 22mm x 130mm in height and length and is 193mm away measured from the graphics card bracket, please check your motherboard for compatibility before installation
-
Download
AI POWER
Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace architecture, and full ray tracing of RTX, GeForce RTX 40 Series graphics cards are beyond fast, giving gamers and creators a quantum leap in performance, AI-powered graphics, and so many more leading platform capabilities. This massive advancement in GPU technology is the gateway to the most immersive gaming experiences, incredible AI features and the fastest content creation workflows. These GPUs push state-of-the-art graphics into the future.
WINGS 2.0
Improved Cooling. Silent Operation

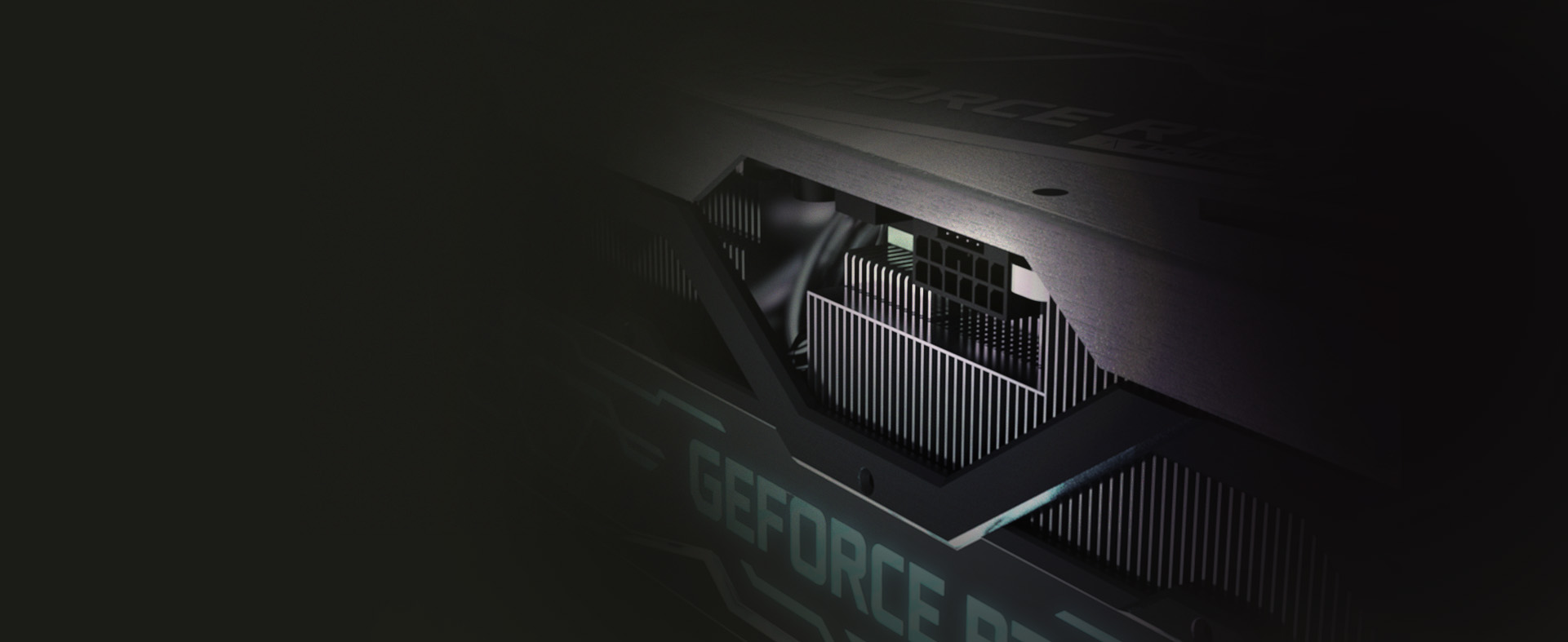

16-PIN PCIe
Power Connector
TRIPLE 102MM WINGS
Powerful Cooling
Larger 102mm fan ARGB support
XTREME TUNER PLUS
you can take control and monitor your graphics cards remotely and wirelessly through the XT PLUS app on desktop & mobile.
available in
multiple languages
