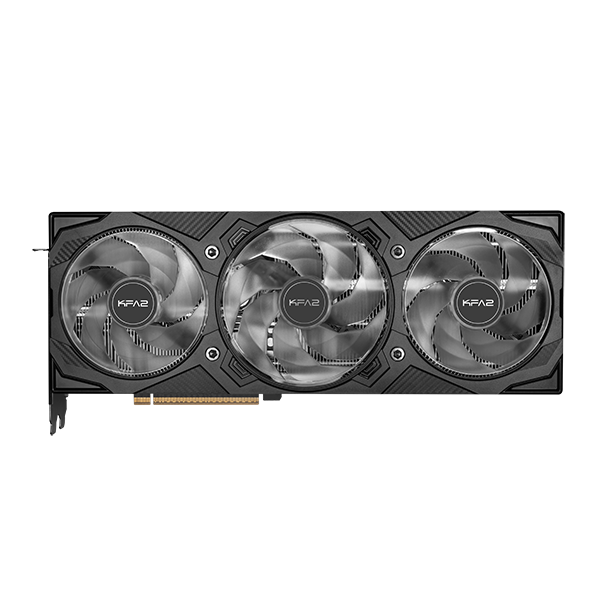

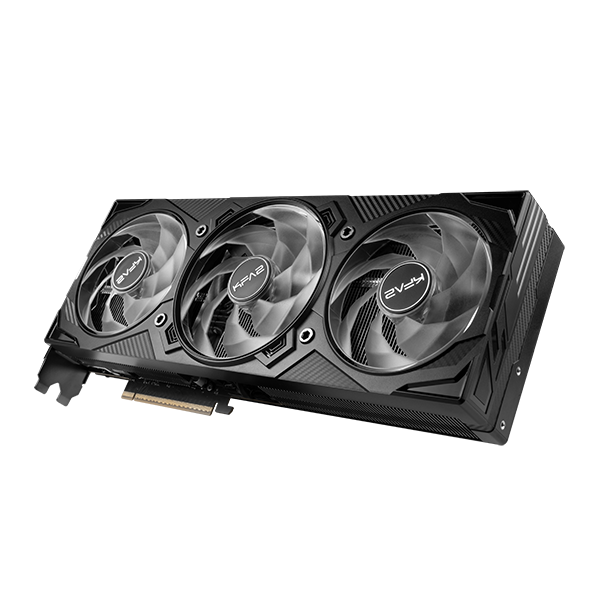

GeForce RTX™ 5080 EX Gamer 1-Click OC
Product code: TBC
EAN: TBC
Powered by NVIDIA Blackwell, GeForce RTX™ 50 Series GPUs bring game-changing capabilities to gamers and creators. Equipped with a massive level of AI horsepower, the RTX 50 Series enables new experiences and next-level graphics fidelity.
Multiply performance with NVIDIA DLSS 4, generate images at unprecedented speed, and unleash your creativity with NVIDIA Studio. Plus, access NVIDIA NIM microservices – state-of-the-art AI models that let enthusiasts and developers build AI assistants, agents, and workflows with peak performance on NIM-ready systems.
-
FEATURES
- Powered by the NVIDIA Blackwell Architecture and DLSS 4
- Dedicated Tensor Cores
- Dedicated RT Cores
- Microsoft DirectX® 12 Ultimate
- GDDR7 Graphics Memory
- NVIDIA DLSS 4
- NVIDIA® App
- NVIDIA G-SYNC®
- NVIDIA GPU Boost™
- Game Ready and NVIDIA Studio Drivers
- DisplayPort 2.1b, HDMI 2.1b
- VR Ready
- To 1-Click OC, overclock, control ARGB and monitor GPU info of your graphics cards in-App, please make sure your mobile device and PC are connected with the same WiFi network.
- All photos, specifications, contents are used for reference only and are subject to change without notice. Actual products in different countries varies and are best to consult your local distributor / importer for confirmation.
-
SPECIFICATION
GPU Engine Specs:
- CUDA Cores: 10752
- Boost Clock: TBC MHz
- 1-Click OC Clock: TBC MHz (by installing Xtreme Tuner Plus Software and using 1-Click OC)
Memory Specs:
- Memory Speed: 30 Gbps
- Standard Memory Config: 16GB GDDR7
- Memory Interface Width 256-bit
- Memory Bandwidth: 960 GB/sec
Feature Support:
- PCI-E 5.0
- Windows 10/11 64-bit
Fan Feature:
- 92mm*102mm*92mm
- WINGS 3.0 with Fan stop @ Idle (All Fans)
Display Support:
- DisplayPort 2.1b x 3, HDMI 2.1b x 1
Dimensions:
- Dimensions(with Bracket): TBC
- Dimensions(without Bracket):TBC

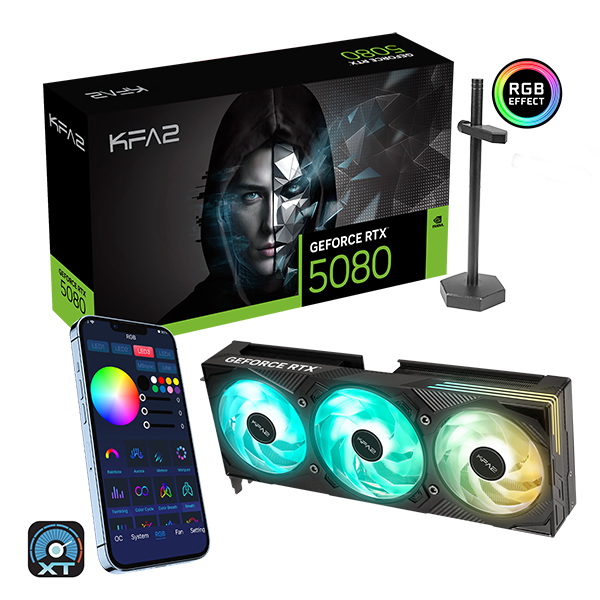

In Box Accessories:
- 1-Click sync pro cable
- Metallic support stick
- PCIe 1x 16-pin to 3x 8-pin adapter
-
REQUIREMENT
- PCI Express-compliant motherboard with one x16 graphics slot
- System Space for 2.5 slot card required
- PSU with native 450W PCIe Gen5 16-pin power connector, or minimum 3 x PCIe 8-pin power connectors (use with included adapter)
- Minimum 850W or greater system power supply
(Minimum is based on a PC configured with a Ryzen 9 9950X processor. Recommend PCIe CEM 5.1 compliant PSU. Power requirements can be different depending on system configuration.) - 32GB system memory recommended)
- Microsoft Windows 10/11 64-bit (Build 2004 or later recommended)
-
DOWNLOAD
LARGER FAN. IMPROVED AIR FLOW.
50 Series EXG graphic card now upgraded to Wings 3.0.
With a powerful 102mm fan supported by two 92mm,
maximize air flow efficiency.
Gaming Performance Power Boost
Definitive AI Performance
Development & Content Creation Acceleration
XTREME COOLING
S Y S T E M
Dynamic Thermal Control
// Triple 92mm wings 3.0
WINGS 3.0
Redesigned. Reinforced.
Refined through extensive aerodynamic simulations, KFA2 GeForce RTX 50 series GPUs introduce an all-new thermally efficient design. With 7 larger WINGS 3.0 fan blades, it delivers enhanced air pressure. The upgraded fans with ring blades also improve cooling efficiency that quickly cools off components and boosts durability.
+15% Air Pressure
-3°C temperature than predecessor
+7 Larger Fan Blades
Ring Blade design
- 5% Noise Level
Silent Extreme Ultra-Quiet Operation

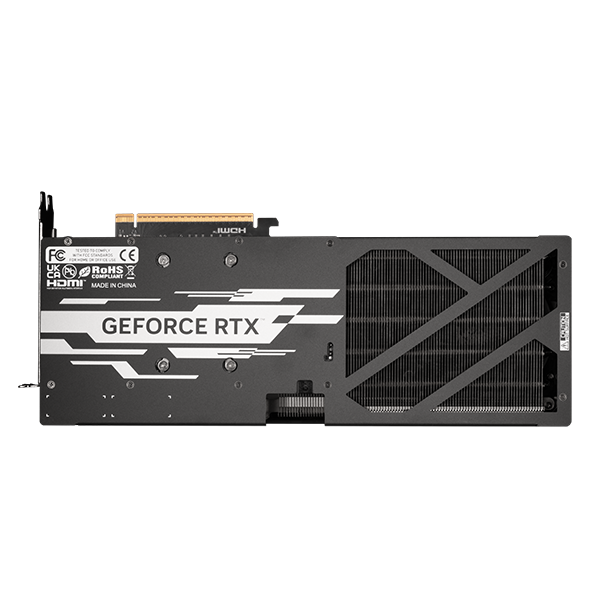

METALLIC BACKPLATE
Expanded Opening for Superior Cooling
Custom-Made PCB design
-Optimised component placement
-Increased GPU power phase
-Increased GPU power phase
Component Temperature
OC Potential

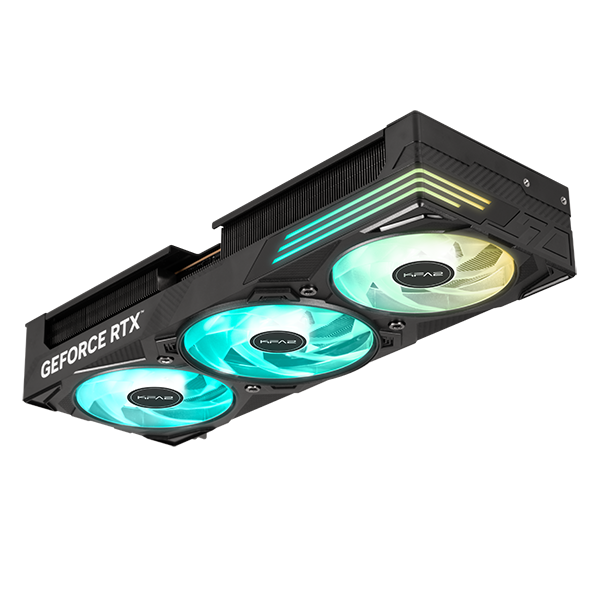

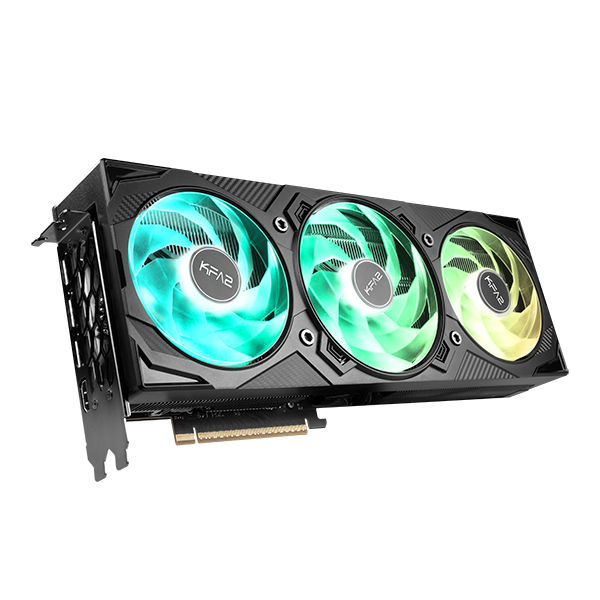

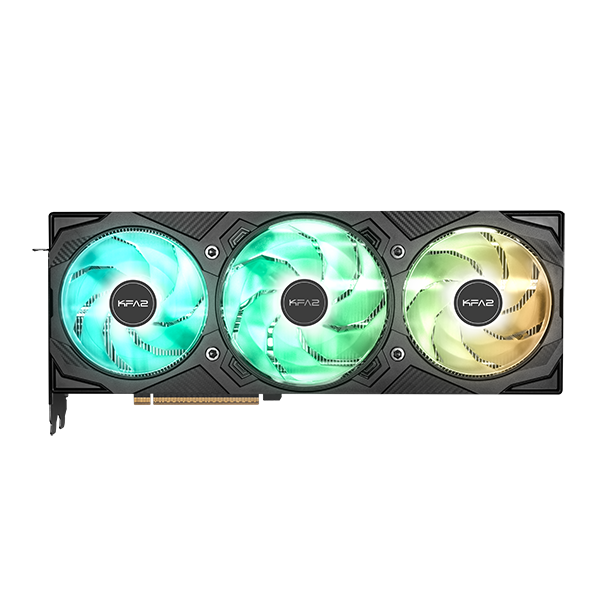

ARGB LIGHTING
Overhaul
Captivating Effects
Front & Side
Dual-Face Lighting
Xtreme Tuner App
Wireless Customization

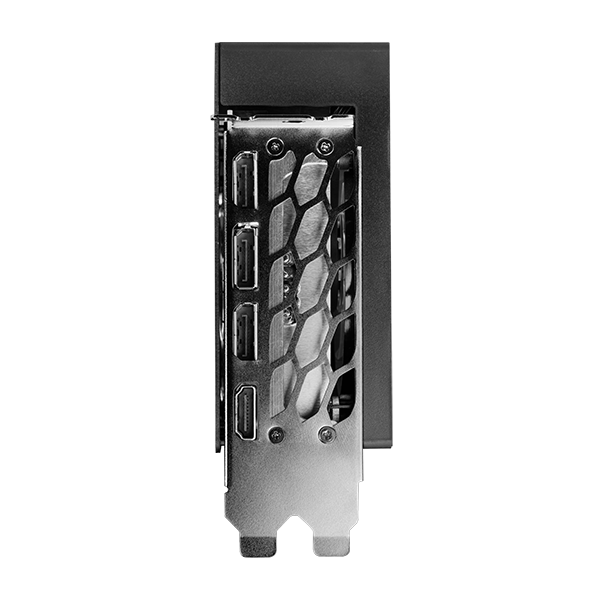

CONNECTIVITY
DisplayPort 2.1b x 3
HDMI 2.1b
Support up to 8K HDR Monitors with High Refresh Rate
XTREME TUNER PLUS
TAKE CONTROL REMOTELY
you can take control and monitor your graphics cards remotely and wirelessly through the XT PLUS app on desktop & mobile.
Available in multiple languages
